NetBSD-current/evbppc for OpenBlockS266

---

About OpenBlockS

OpenBlockS series are Plat'Home Co., LTD. products.

OpenBlockS lineup:

• OpenBlockS : Motorola PowerPC 860T 50MHz
• OpenBlockSS : IBM PowerPC 405GP 200MHz
• OpenBlockSR : IBM PowerPC 405GP 200MHz
• OpenBlockS266 : IBM PowerPC 405GPr 266MHz

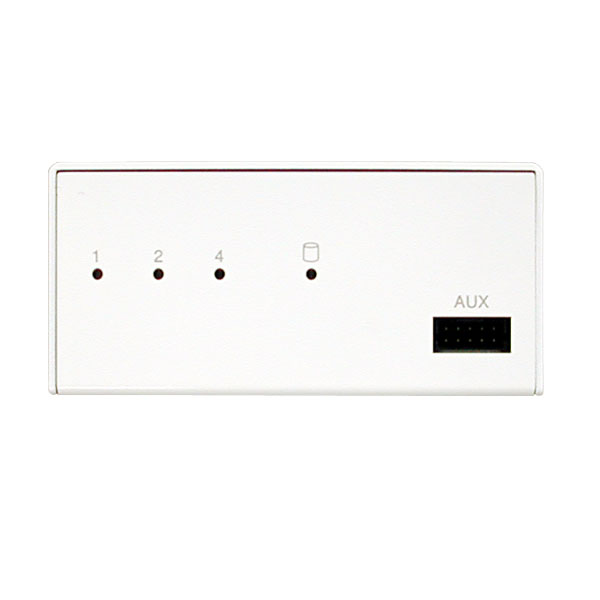

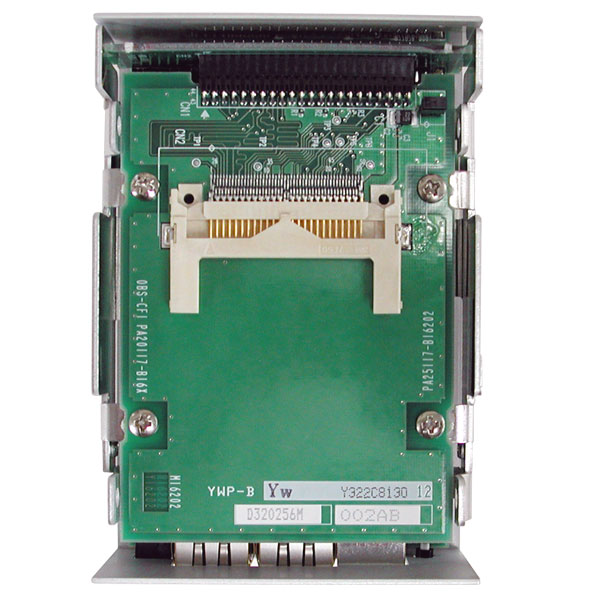

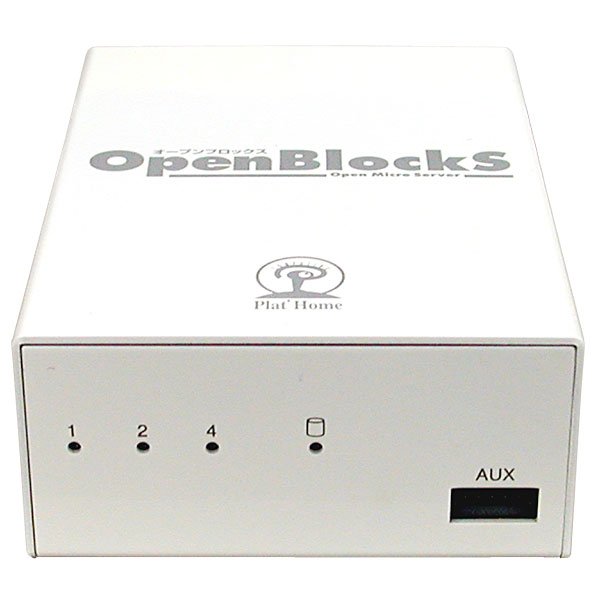

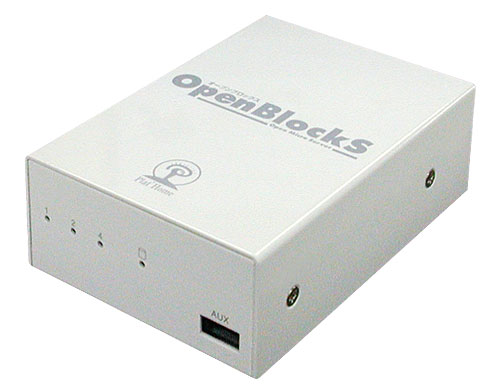

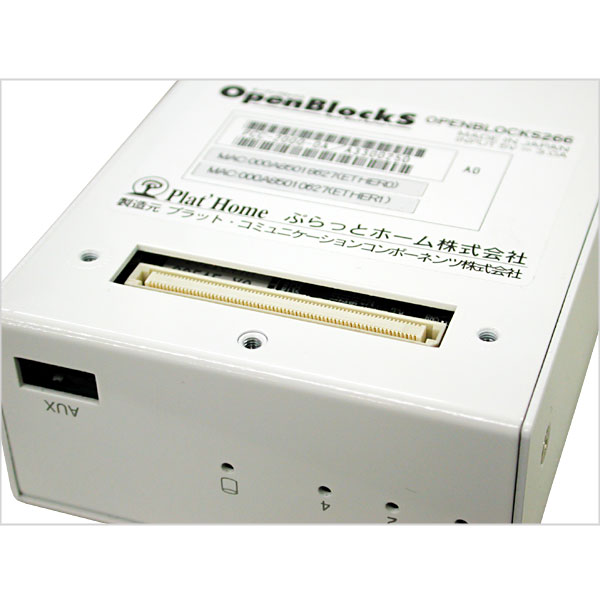

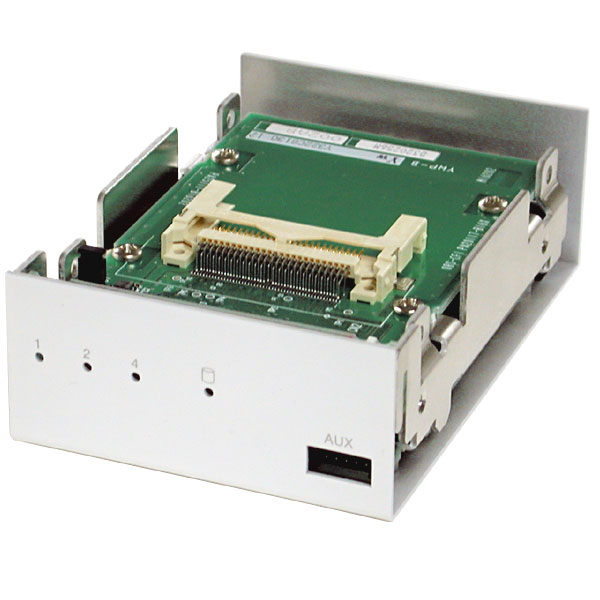

OpenBlockS266(white color only) Photos:

OpenBlockS266 Hardware Specification:

• OpenBlockS266 Hardware Specification
• IBM 405GPr Embedded Processor Specification
  • User's Guide
  • Data Sheet
• X1226 RTC(Real time clock/calendar) Chip Specification

*: Sorry, Plat'Home web japanese only.

---

How to build Kernel

1. Check out NetBSD-current src tree.

       # cd /usr
       # cvs -d :pserver:anoncvs@anoncvs.netbsd.org:/cvsroot longin
       (use password "anoncvs")
       # cvs checkout -P -d src


2. Preparing directories.

       # mkdir /var/tmp/build
       # mkdir /var/tmp/build/objs.powerpc
       # mkdir /var/tmp/build/tools.powerpc


3. Build kernel: Kernel config file = OPENBLOCKS266

       # /usr/src
       # ./build.sh -u -m evbppc -O /var/tmp/build/objs.powerpc \
                    -T /var/tmp/build/tools.powerpc tools
       # ./build.sh -u -m evbppc -O /var/tmp/build/objs.powerpc \
                    -T /var/tmp/build/tools.powerpc kernel=OPENBLOCKS266


---

Update Flash Image

• Turn ON DIP-SW(SW2)-2

---

Release Distributions

Distribution archives:

• (now building...)
• Already merged for NetBSD-2.1 (not yet released).
• Already merged for NetBSD-3.0 (not yet released).

---

TODO

• RTC driver / todclock DONE@2003/07/01
• Getting Borad Information from IBM OpenBIOS DONE@2003/07/04
• Testing for PCI-IDE Triones HPT371 driver
• Testing for Tulip PCI Ethernet driver (ETHER-1)
• Developing On-chip GPIO driver
• Developing front LED driver on GPIO
• Merging with evbppc-WALNUT?
• Others...

---

Special Thanks

• Yoshihiro Masuda [URL (link dead...)]
